The compact dimensions of the AMS 200 Goniophotometer make this instrument particularly suitable for photometric laboratories with limited floorspace. It is ideal for measuring the optical characteristics of small to mid-sized signal lamps, headlamps and headlamp modules, including projection systems for dipped beam, main beam and retro reflectors.



The AMS 200 comprises the goniometer with a sample stage measuring 20 x 20 cm and the AMS Controller integrated in a separate 19” rack. A laser located in the center of rotation of the vertical axis facilitates alignment of the test sample. Sockets on the sample stage provide electrical connection to the sample. This ensures that the probe cables do not become ruptured during operation because they move synchronously with the sample.



The system features fast “on-the-fly” measurement scans. An optional pulse-width modulation generator (PWM) can be supplied for LED lamps. The competitively priced performance and compact size makes this goniometer an extremely attractive choice.





Features



• CIE type A goniometer for photometric measurement in the far field
• For test samples up to 450 mm in length and weighing 8 kg
• Measurement of luminous intensity distribution in isolux and isocandela diagrams
• Data export in IES, KRS, CSV formats

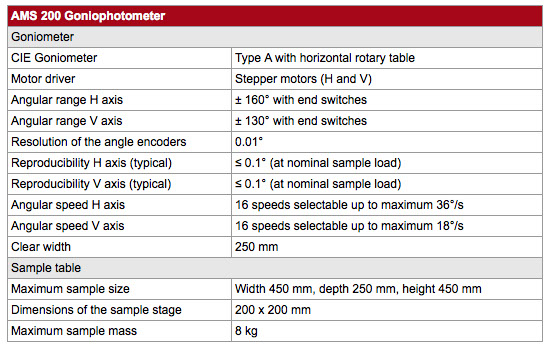

Techical Specifications
