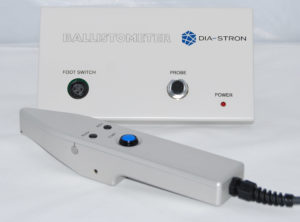

Ballistometer

To measure Skin Frimness and Resilience.

Feature / Specification:

• The method is based on the traditional ballistometric principle of impacting an object at constant force and measuring its firmness by indentation and dynamic resilience by the degree of rebound.
• Use at any angle: non-gravity dependent
• Measure on difficult test sites.
• Consistency used probe arm.
• User friendly software with automated analysis (Windows 7 and 10)
• Probe length: 250mm
• Probe height: 40mm
• Probe width: 50mm
• Computer interface: USB
• Coefficient of Restitution: CoR; High value indicates a high elastic sample
• Alpha: the rate of energy damping; Large value indicates energy absorbent (in-elastic) sample
• K: the start height of the probe tip above the skin surface; directly related to energy stored in torsion wire.
