LEX820 - High Resolution Tensile Tester

back

High Resolution Tensile Tester

Feature / Specification:

  • To measure fine fibre tensile that requires high resolution extensometer.
  • Based on DC micrometer drive offers exceptionally smooth travel combined with high positional repeatability.
  • Extension range: 3 - 53mm
  • Speed range: 0.01 to 2.6mm/s
  • Force range: 0 to 2.5N or 0 to 20N
  • Force resolution: 0.05mN (2.5N) or 0.5mN (20N)
  • Displacement resolution: 1μm
  • Displacement accuracy: 50μm
  • Load cell linearity: ±0.1% full scale
  • Sample size: 4 to 30mm
  • Computerized system with UvWin software on Windows XP, 7 and 10.

Application:

  • Tensile characteristics of natural fibre, single carbon filament fibre, glass fibre and man made fibres. Click here for references and publications.

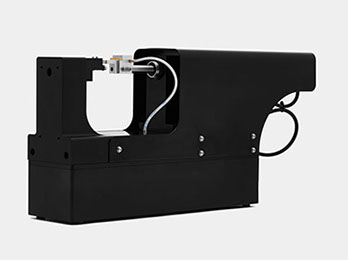

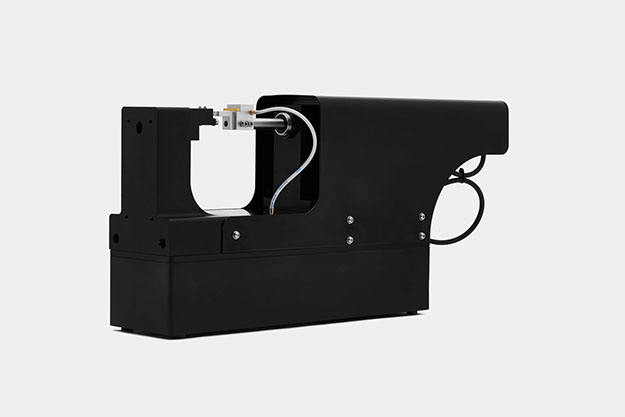

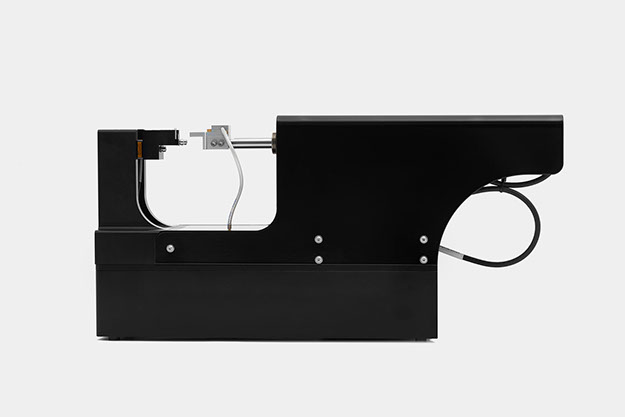

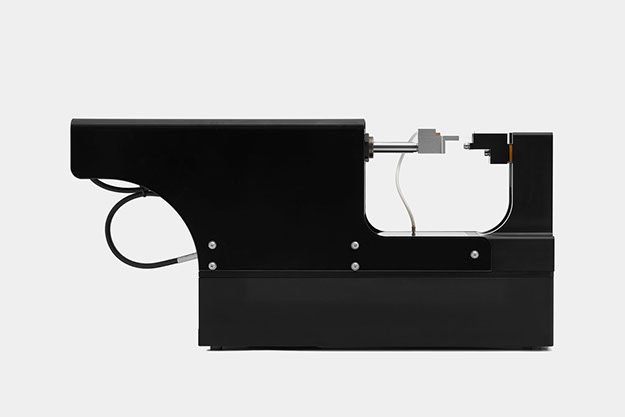

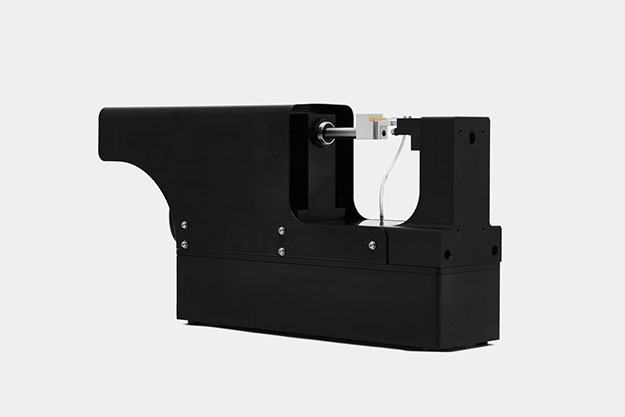

Photos:
