Multi Dermascope MDS 1000

• What can the device do?

  • measurement of skin hydration showing the results: very dry, dry or sufficiently moistured skin
  • oil (sebum) content assessment on skin and hair, showing the results: low oil, normal and oily
  • the elastic properties of the skin (biological skin age) measured by suction (ability of the skin to resist /firmness versus its ability to return to the original position). The result is displayed in % and a chart helps to relate the measurement to the person's age.



  • measurement of skin pigmentation and the recommendation of the suitable sun protection factor (SPF) for sun exposure.
  • interpretation of the results on LED chaines









  • Visioscope® AP 35 skin camera with parallel and cross polarized light. Parallel polarized light shows the skin surface structure and cross polarized light shows the skin in depth (e.g. pigmentation, blood vessels, etc.). The light is simply changed by shortly pressing the button. Pressing the button longer freezes the image on the built-in video-montor to be discussed with the customer. The camera is also suitable to monitor hair and scalp (hair damage, dandruff, etc.)

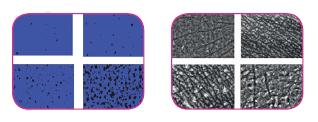

  • Special foils Sebufix® F 16 and Cornoefix® F 20 in convenient dispensers usable with the camera to perform quantitative analysis of sebum production and desquamation (chart interprets the images visible on the monitor). The Sebufix® mounted on the Visioscope® camera shows the sebum production in real time on the monitor.







• Advantages of the Multi Dermascope MDS 1000

  • new attractive design
  • ideal tool for all who want to do a comprehensive skin analysis without using a computer.
  • quick and easy measurements combined with impressive close up images.
  • measurement results directly interpretated on the device so easy to understand for your customer.
  • product recommendation for skin care, hair care, suncare, special products and treatments possible (we recommend to



           make "skin passports" in which you can fill in the results and the recommended products.

  • Ask for special transportation suitcases (trolley style)

• Technical Data

  Device

  Dimensions: 37 x 28 x 22 cm, Weight: approx. 2.7 kg (without probes), External power supply: 100-240 VAC/12VDC,



  Moisture

  Measurement: capacitance, Time: 1 s, Scale 0-99, Frequency: 0.9-1.2 MHz, Dimension: 11 cm, Weight: 41 g, Cable length: 1.3 m



  Sebum

  Measurement: photometrical, Time: 10 s, Scale 0-99, Dimensions: 8.5 x 11.3 x 2.3 cm, Weight: 65 g, Number of measurement: approx. 400 (if the trigger is only pulled down slowly for the next free measuring section). when tape is consumed, the whole cartridge has to be renewed



  Elasticity

  Measurement: suction with 400 mbar pressure, Time: 6 s (3 s suction and 3 s relaxation), Scale 0-99, Probe opening: 2 mm Ø, Dimensions: 13 cm x Ø 2.4 cm, Weight: 95 g, Cable length: 1.3 m



  Melanin/Pigmentation

  Measurement: absorption/reflection, wave lengths: 568, 660 and 880 nm, time: 1 s, Scale 0-99, Dimensions: 13 cm x Ø 2.4 cm, Weight: 85 g, Cable length: 1.3 m



  Visioscope® AP 35 analogue skin camera

  Power Supply: 5 V DC (via main device), Dimensions: 12 x 5.5 x 5.5 cm, Weight: 220 g, Cable length: approx. 1.5 m, Light source: White LED →multi function camera button switches the polarization mode (short press) and freezes the image (long press), Image size : 6 x 8 mm → approx. 10 mm diagonal, Video output mode: PAL



  Monitor

  Dimensions: approx. 17 x 17 x 18. 6" → approx 144 mm diagonal → 14.4 x zoom



  Sebufix® F 16

  Milky foil to determine the sebum content qualitatively, Dimensions: 1.7 x 1.7 cm, Thickness: 0.2 mm



  Corneofix® F 20

  Transparent foil to assess desquamation, Dimensions: 2.00 x 1.95 cm, Thickness: 0.1 mm



  Foils are completely harmless for the skin



  Technical changes may be made without prior notice.
