VisioFace® 1000 D

back

Full Face Photography for Analysis and Treatment Documentation



Take impressive, high resolution full face photographs under standardized lighting and in the the same position and analyse the changes in a most economic way.

  • Advantages of the VisioFace®

    • The most interesting combination of powerful hard- and software and economical price.
    • High resolution reflex camera integrated (over 12 Megapixel)
    • Stable, long lasting and extremely homogeneous illumination of the face by 210 white light LEDs, without developing heat
    • Head and chin rest for the exact position for a frontal image and images taken sideways.
    • When not in used the device is lit by an attractive stand-by illumination
    • Head and chin rests are easy to clean.
    • Simple connection to the computer by USB
    • Not only interesting analyses of different parameters can be performed on the image but also products and treatments can be recommended automatically after the session.
  • The Software

    The VisioFace® is operated with the sophisticated software Complete Skin Investigation (CSI)

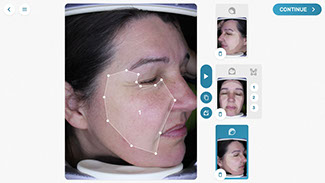

    • Before the image is taken, the previous image of the customer can be overlayed over the live image in the software as a "ghost image" to help match exactly the same position.
    • When zooming into the image, even slightest details of the skin can be studied.

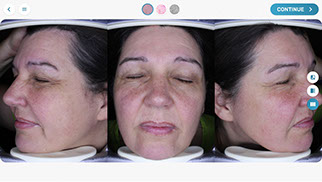

    • Zoom into 4 images of the same person simultaneously to study changes.
    • Analyses of all 4 images at the same time are possible to monitor changes.
    • Calculates the fine and large pores: number, size and area (in pixel)
    • Calculates wrinkles (area, surface and volume in pixel) by clicking in the respective wrinkle
    • Calculates colour differences on the skin in lightness (L*) and  in ΔE.
    • Find visibile spots and calculate their number, size and area (in pixel)
    • Even though the VisioFace® used only white light to take the image, "UV-like" images can be produced to show sun damage and premature skin aging.
    • Details of the image can be highlighted as 3D images.
    • For all calculations sophisticated reports can be printed.

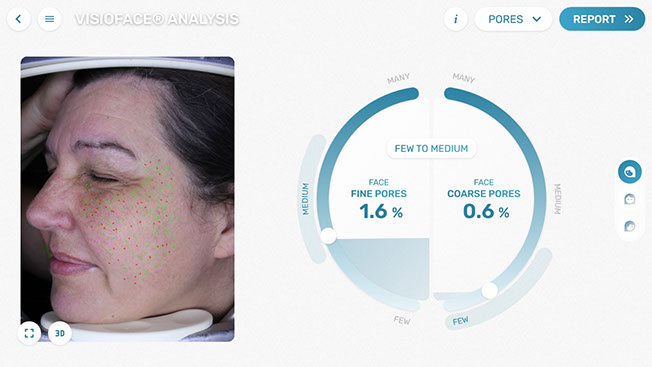

    VisioFace® analysis of large and fine pores

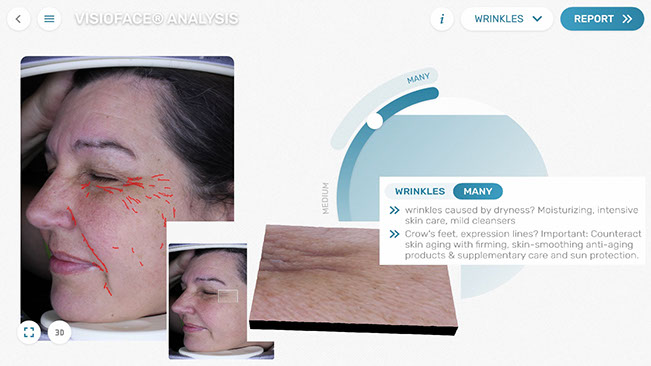

    VisioFace® analysis of wrinkles

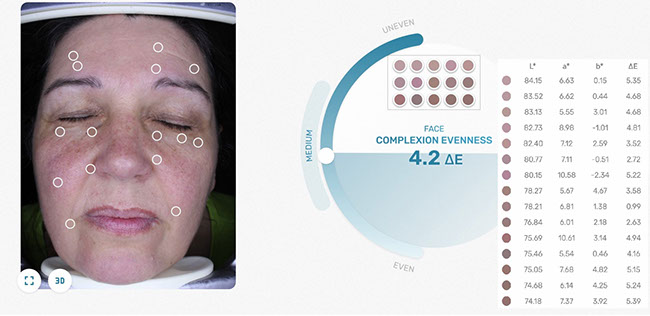

    VisioFace® analysis of colour differences

    VisioFace® analysis of spots

    VisioFace® UV-like pictures

    VisioFace® 3D pictures

    • In addition cosmetic treatments and products can automatically be recommended at the end of a session
  • Technical Data

    Dimensions: 54 x 50 x 44 cm, Weight: approx. 11.4 kg (with accessories 13.8 kg) Illumination: 210 White light LEDs, Camera: Canon EOS 1000D, over 10 Megapixel

    Power Supply: external 100-250 V, 47-63 Hz, DC 12V/4A, Port: USB



    Computer: Windows® Vista or 7/8/10, performance must meet system requirements, USB 2.0



    Technical changes may be made without prior notice.
