Visioscope® PC 35

back

A Close Look on Skin & Hair

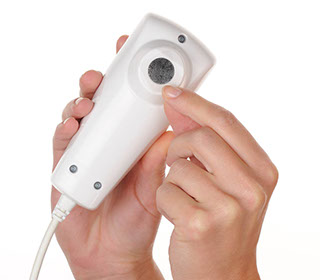

Unique USB skin camera to look at certain skin areas in detail (10 x 8 mm). The camera has parallel and cross polarised light, simply switchable by pressing a button.

  • What can the device do?

    The camera takes most impressive images of the skin surface, of hair and scalp and other body parts (e.g. nails, lips etc.). It is USB based and can simply be connected to any computer.



    Pressing the camera button shortly switches between a parallel polarised light source, which shows the structure of the skin and a cross polarized light source which shows the deeper levels of the skin (pigmentation, blood vessels, etc.). Pressing the button longer freezes the live image on the screen.

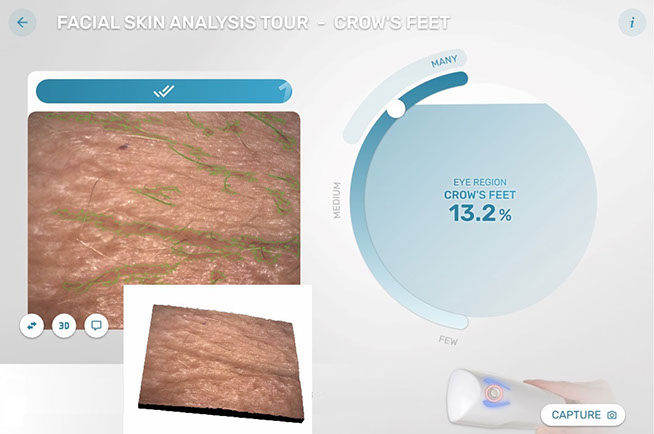

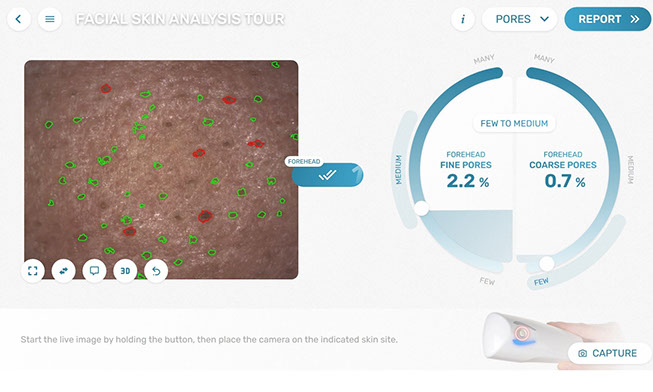

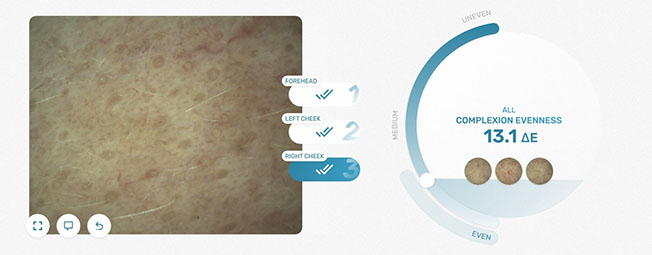

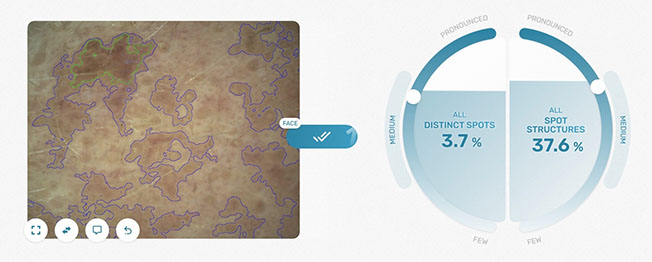

    • The camera works with the attractive and sophiscated software Complete Skin Investigation - CSI. There wrinkles, pores, spots, sebum and desquamation can be analysed and products & treatments are recommended.

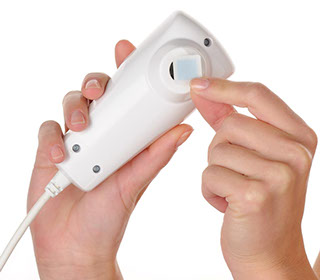

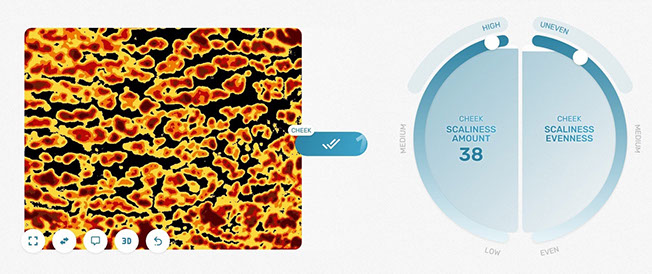

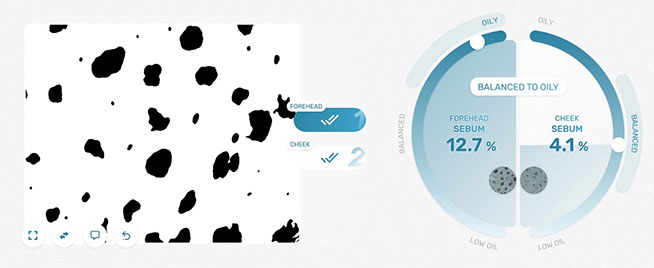

    • Special foils Sebufix® F 16 and Cornoefix® F 20 in convenient dispensers usable with the camera to perform quantitative analysis of sebum production and desquamation (chart interprets the images visible on the monitor). The Sebufix® mounted on the Visioscope® camera shows the sebum production in real time on the screen.
    • camera supported questions in Hair Care Recommendation allow the use of your customer's hair & scalp images for comparison

    The camera can be also operated with the brand new software Dermacheck 3000  especially suitable for the aesthetic practice and the institutes to save skin images and to do dermatoscopy. The software is modular and license based.

  • Advantages of the Visioscope® PC 35

    • new, attractive design
    • easy connection via USB
    • all kind of images on skin & hair can be taken
    • easy switching between parallel polarised and cross polarized light

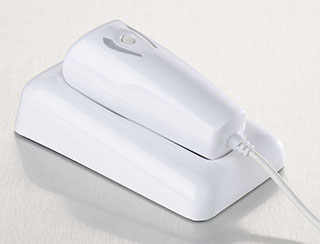

    • practical holder for the camera supplied
    • product recommendation for skin care, hair care, suncare, special products and treatments possible
    • The camera can be used by itself or in the device Multi Skin Test Center MC 1000. An analogue version of the camera is integrated in the Multi Dermascope MDS 1000.
  • Technical Data

    Power supply: 5 V DC (is powered directly via main device or USB port), Dimensions: 12 x 5.5 x 5.5 cm, Weight: 220 g, Cable length: approx. 1.5 m, Light source: white LEDs, Multifunction camera button changes between polarization (short press) and freezes the image (longer press), Image size: approx. 10 x 8 mm, on the screen approx. up to 15-20 x-zoom depending on the monitor size



    Sebufix® F 16: Milky foil to determine the sebum content qualitatively, Dimensions: 1.7 x 1.7 cm, Thickness: 0.2 mm



    Corneofix® F 20: Transparent foil to assess desquamation, Dimensions: 2.00 x 1.95 cm, Thickness: 0.1 mm



    Foils are completely harmless for the skin



    Computer: Windows® Vista or 7/8/10, performance must meet system requirements, USB 2.0



    Technical changes may be made without prior notice.
