Model 3D UV Minder® Intensity Meter accurately measures the UVA and UVB spectra for SPF testing, cosmetics research, dermatology, environmental research, agriculture, and forestry.



Description

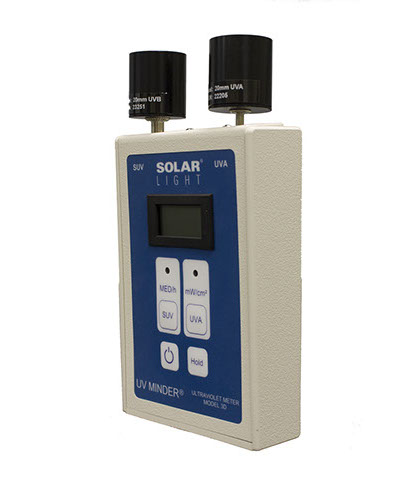

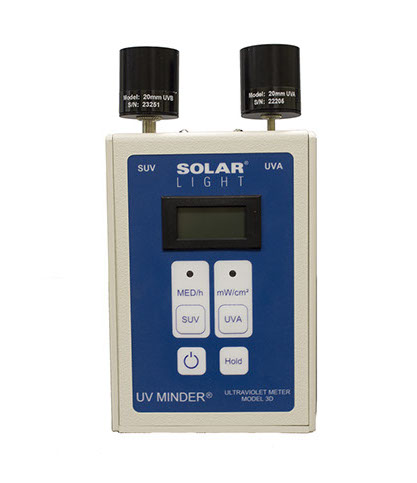

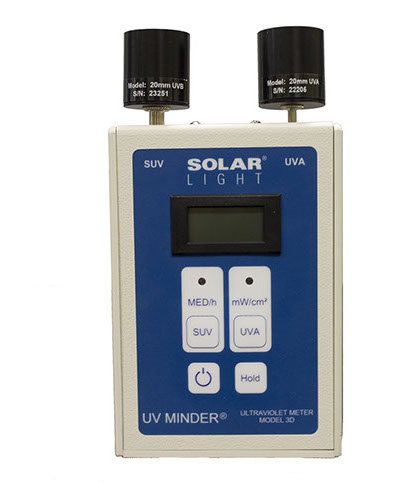

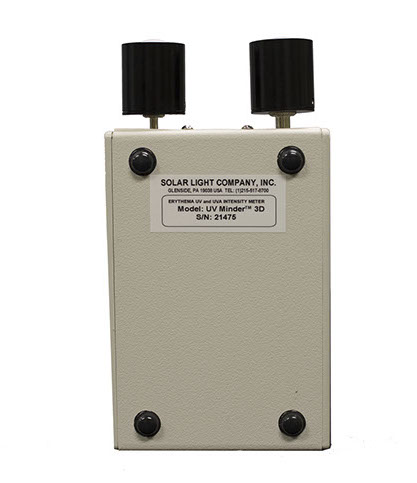

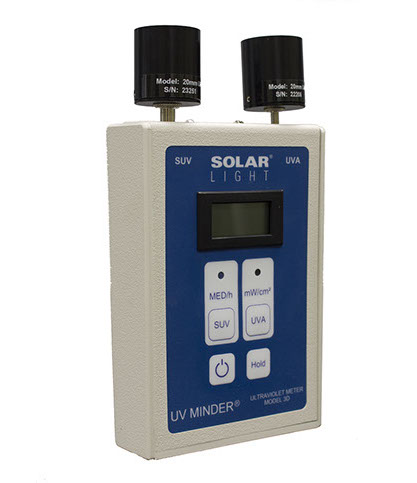

Model 3D UV Minder® Intensity Meter accurately measures the UVA and UVB spectra with its on-board UVA and UVB sensors. The meter shows the intensity of UVB (also called SUV – Sunburning UV) in Minimal Erythemal Doses per Hour (MED/Hr), the accepted clinical measure for sunburn potential. The UVA sensor measures UV intensity in the 320-400nm range, displaying UVA irradiance in mW/cm2. We also offer a special Model 3D-XP Xeroderma Erythemal UV Intensity Meter for measuring very low UV intensity, down to 3 decimal places, for XP patients. Please specify wavelength range required when ordering. The 3D meter is durable, simple to use, and extremely accurate.

Application

  • SPF testing
  • Cosmetics Research
  • Dermatology
  • Xeroderma Pigmentosum
  • Environmental Monitoring
  • Environmental Research
  • Agriculture and Forestry

Input Ranges

Resolution

Operating

Environment

Power Source

Power Consumption

Battery Life

UVB (SUV) 0.19.99 MED/Hr

UVA 0.19.99 mW/cm2

0.01 MED/Hr or mW/cm2

32 to 120°F (0 to +50°C)

9 volt Alkaline Batteries

<300μA

 >40 Hours Continuous Use

External Power

 9-12V AC or DC Adapter

Program Control

 4-Button Keypad

LCD Size

3.5 Digit

Size (WxDxH)

3.75”x5.5”x3.4” (9.5x14x8.6 cm)

Weight

8 oz. (227 grams)
